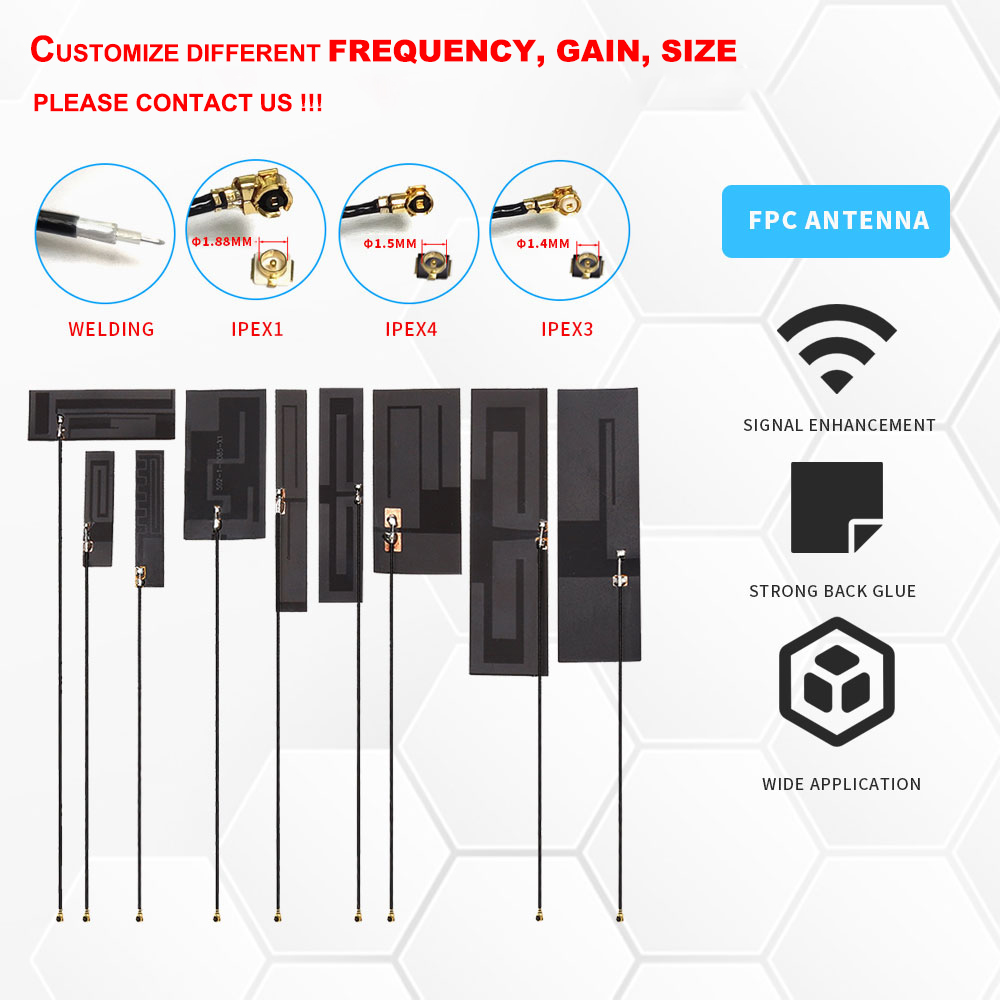

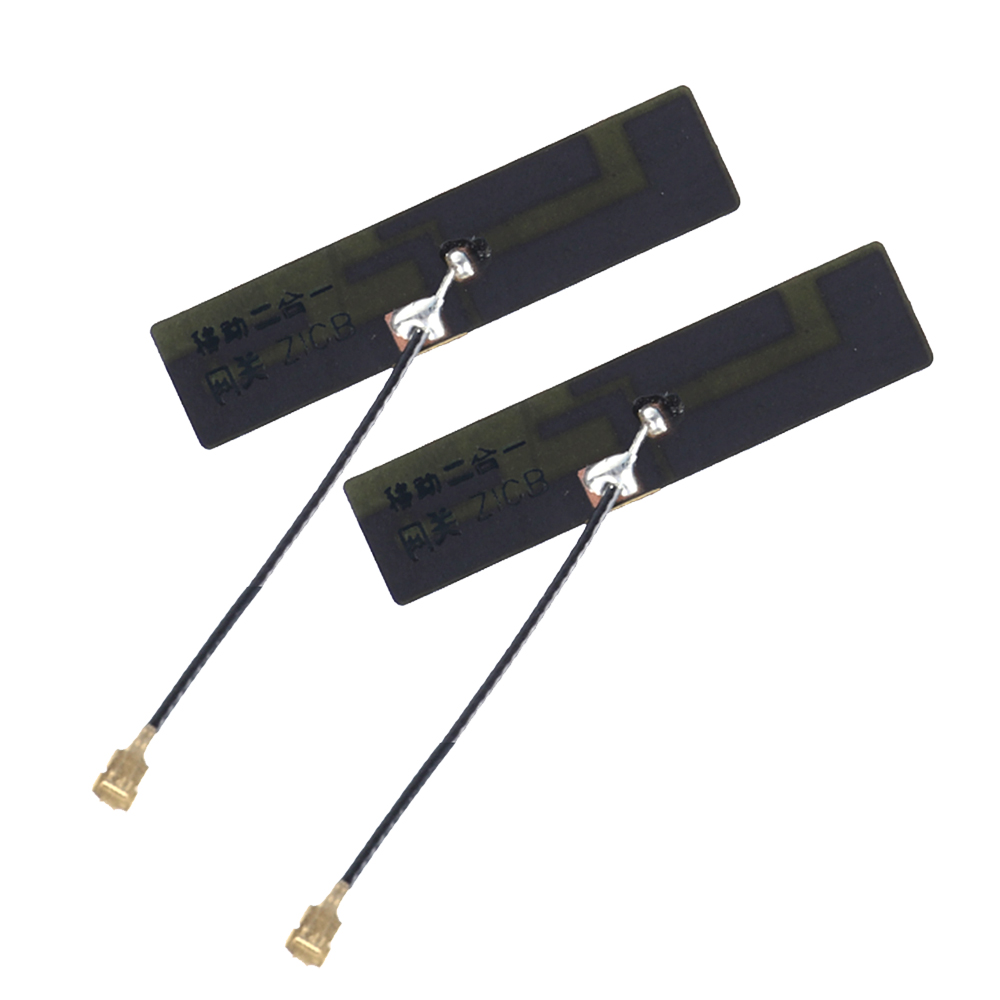

2400-4900 Mhz Built-In GSM Foldable FPC Internal Antenna

Short Description:

2G 3G 4G Div Ant For Radio Modules From Mimo Primary Antenna

Internal Built-in Rohs 5G 4G LTE 3G 2.4G WIFI 2G GSM Antenna

FPC Antenna GSM GPS Antenna  FPC Antenna Manufacturer for GSM Module  Antenna

Overview

Essential details
Model Number:FPC ANTENNA
Type:internal antenna
Place of Origin:Guangdong, China
Brand Name:LANYI

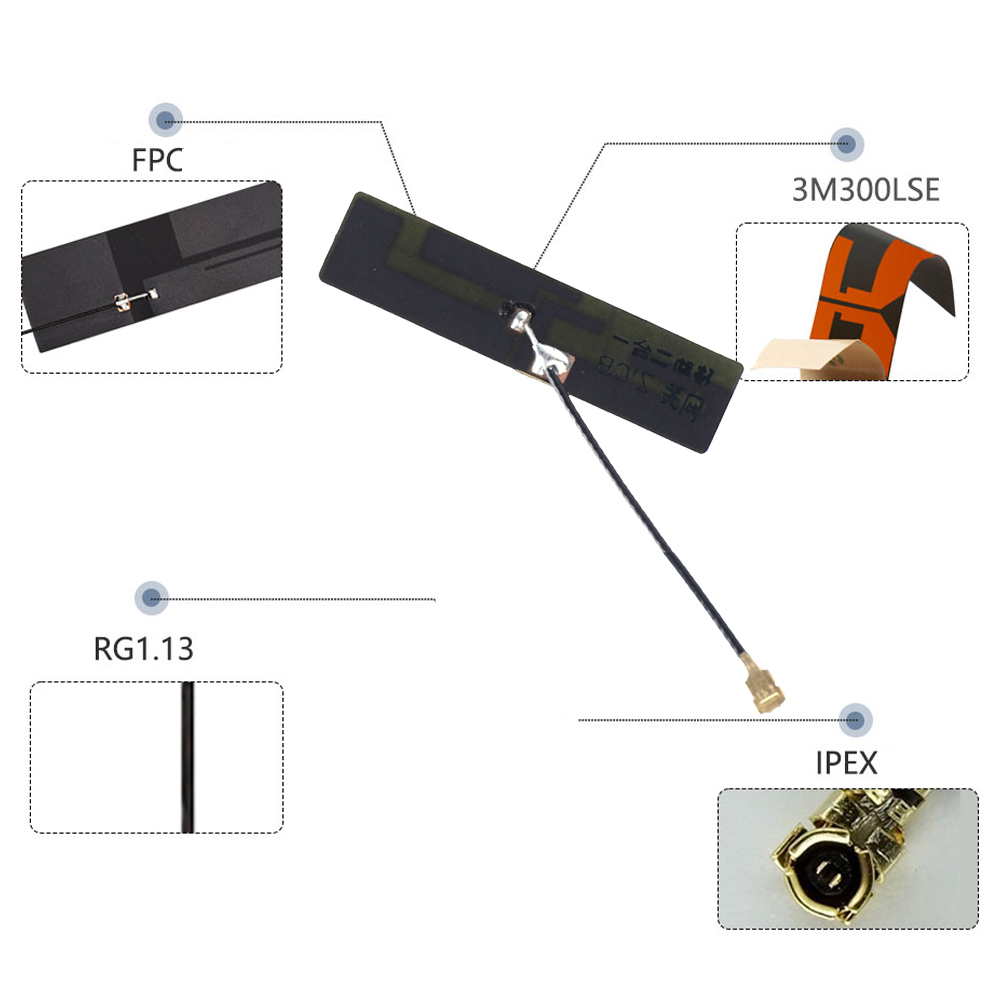

Model Type:FPC flexible ufl internal antenna
Frequency range:2G,3G,4G,5G,WIFI,GNSS,GPS …OEM
Gain:3-8dbi
nput impedance:50Ω
Material:Radiator FPC
Antenna Size:OEM
Cable type:1.13 coixial cable
Length:10cm or customized
VSWR:≤1.8

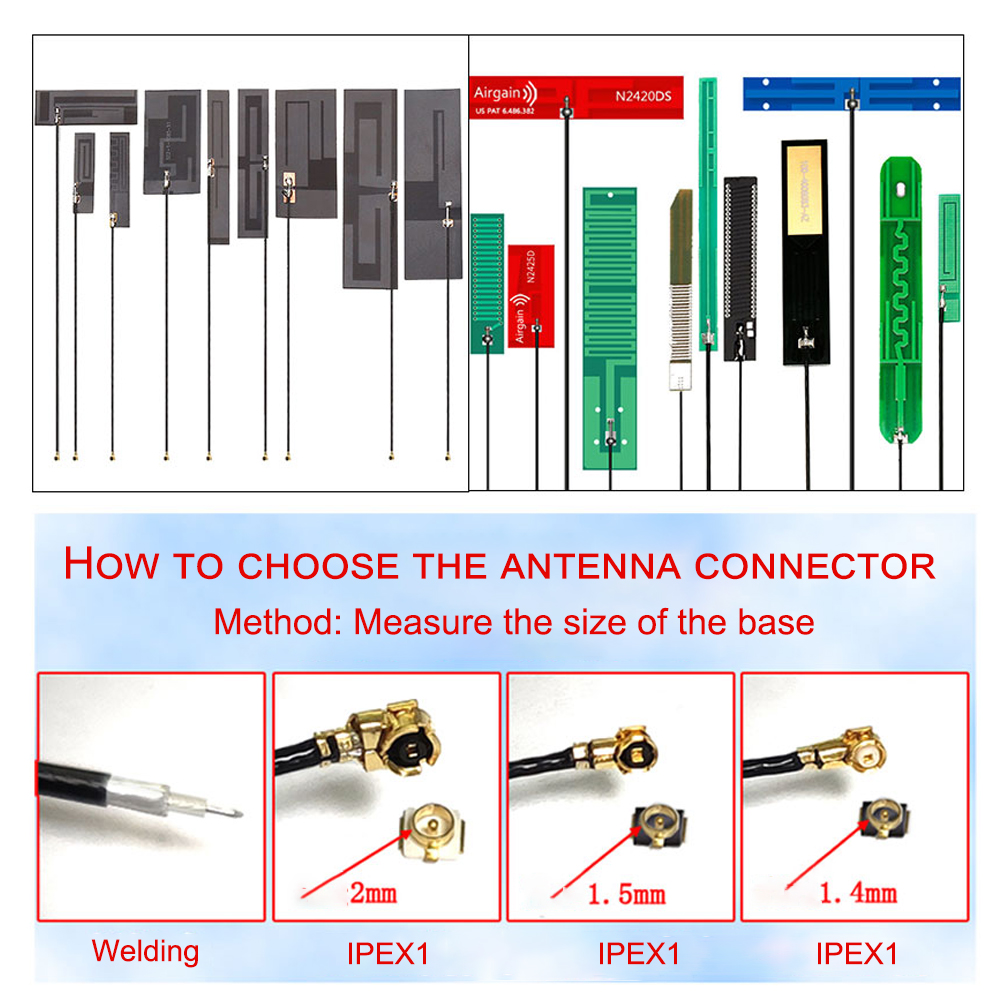

Connector style:IPEX/MMCX/MHF4 etc
Supply Ability:200000 Piece/Pieces per Month
Packaging & delivery
Packaging Details:

1.1pcs antenna in one pp bag,

2.200pcs in one carton,
Port:shenzhen
Lead time:
Quantity(pieces) 1 - 1 2 - 1000 1001 - 10000 >10000
Lead time (days) 3 7 15 To be negotiated

Product Detail

PRODUCT DETAILS

Product Tags

Overview

Model Number LY-AC05
Type WIFI REPEATER, 5g signal booster 4G/GSM/3G
Place of Origin Guangdong, China
Brand Name LANYI
Network Wireless Lan, bluetooth, Wired LAN, ONVIF, None, None, SDK, TCP, Ip, POE, GPRS, wifi, 4g, GSM, 3G, Wiegand
Apply frequency 800-900-1800-2100-2600
Gain 70dBi
Net Weight 1.15kg
Signal Range 101-200㎡
Cable length 10M+3M
Viewing screen Color screen
Amplifier size(mm) 198*180*28MM
Power 20
Units set
Supply Ability 200000 Piece/Pieces per Month

Packaging Details

30Dbi 360 Degree tv aerial clear indoor digital tv antenna_21

1.1pcs antenna in one pp bag,
2.200pcs in one carton,

Port:shenzhen

Quantity(pieces) 1 - 1 2 - 500 501 - 1000 >1000
Est. Time(days) 7 10 25 To be negotiated

FAQ

Q: Can we customize the product ?

A: Yes.We can customize according to your requirements, such as customized frequency, gain, productappearance, joint, wire type and so on. We have professional laboratory and technical personnel to provide test reports .

Q: Can i get one sample?

A: Yes, sample is for free. We will provide you sample for free as long as you afford the express freight.

Q: What can you buy from lanyi ?

A :TV Antenna,GPS Antenna,Magnetic Antenna ,RF Cable Assemblies,Radio/Car Antenna,Wifi Repeater,Internal Antenna,External Antenna,Outdoor Antennas.

Q: Can i visit your factory on line?

A: Just call us, We can video call and answer phone call at any time.

Q: Why is there still no signal after installing the equipment ?

1. Check the power on booster and power supply.
2. Check the connector of outdoor antenna is tight or not.
3. Check the connectors of RF cable are tight or not.
4. Check the outdoor signal is strong enough or not.
5. Check to make sure the antenna is installed correctly.
6. Check the connector of indoor antenna is tight or not.
7. Check the cable type is suitable or not.

Q. Why teh sugnal is too weak on the edge of area?

1. Check the outdoor signal and antenna direction.
2. Check booster is full gain or not.
3. Check all of the connectors are tight.
4. Change the location of outdoor/indoor antenna.
5. Check the cable type is suitable or not.
6. Deploy more indoor antennas.

Q. After running booster, why the signals are not stable?

1. Checking the distance between donor antenna and server antenna are too close to each other? Check LED of booster to make sure alarms are green.
2. Checking the signals from donor antenna whether to be stable or not?
3. Connect the system again if it is incorrect connection.
